CONTROL PANEL SHOP SERVICES

  • Home
  • Control Panel Shop Services

PACIV will design, fabricate, and/or install any type of panels to fulfill our clients’ control system and communications needs.

Our panels are fabricated as per clients’ requirements and can cover any type of process area classification.

Our industrial panels can be designed as Main Control, Extended/Remote 1/0, Power Distribution, Network Cabinets or any other manufacturing application-type panels to satisfy the client’s project needs. We procure all materials in-house required to fabricate the panels, perform and document all check-out/testing (FAT ), and provide panel installation and field wiring termination as required at the site.

In addition to new panel fabrication, we can also retrofit existing panels in the field to ensure the most up-to-date and current PLC, HMI, and Network versions and solutions are being utilized.

PACIV UL Certified Industrial control Panel Fabricator Our PACIV-USA office is a UL508A approved Industrial Control Panel Shop.

Our Control Panel Shop Services include:

  • Generation of Control Panel Engineering Design and Specifications, including Panel Layout and Electrical and Wiring Schematic Drawings
  • Fabrication of new PLC/DCS and Power Distribution Panels (Low/High Voltage, VFD/Motor Control, etc.)
  • Network Communication Technologies (i.e. Industrial Ethernet, Radio, 4G and 5G, ControlNet, DeviceNet, Serial, etc.)
  • Procurement of Panel Hardware, Software and Components
  • Programming and Configuration of PLC and HMI systems widely used across global manufacturing platforms (i.e. Rockwell, DeltaV, Omron, Siemens, etc.)
  • Panel Commissioning Services
  • UL 508A Standards conformance and panel UL certification/labeling
  • Delivery to client site and Startup Testing (i.e. Field IO, Loop Checks, Software/Network/VFD Configuration, etc.)

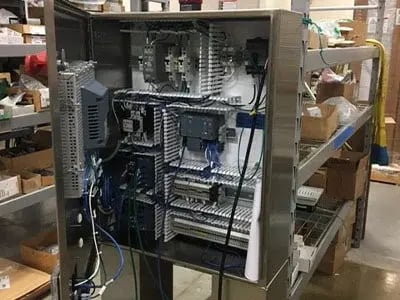

control panel open

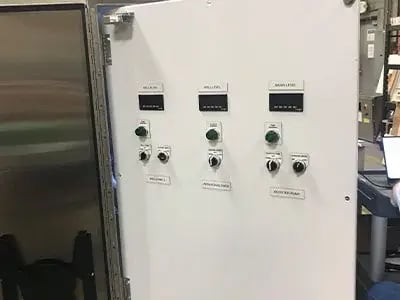

control panel closed

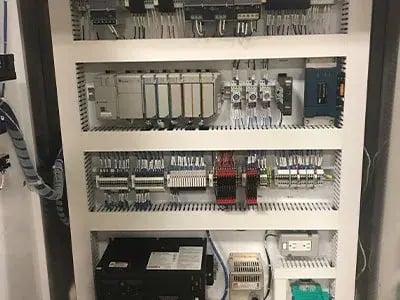

control panel system

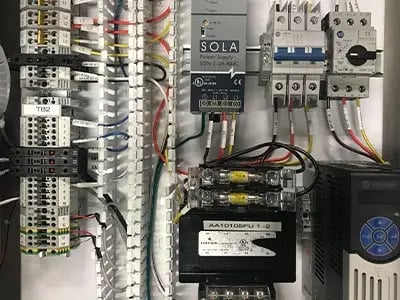

control panel circuits
control panel service

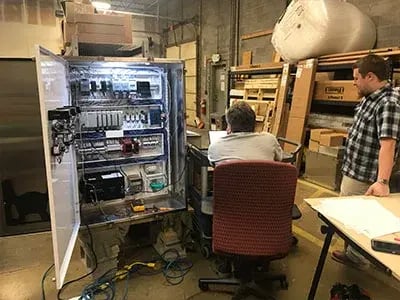

control panel shop
